What is Life Cycle Assessment?
Imagine standing at the start of a building project. Before a single brick is laid or a single column is poured, the project already carries an environmental footprint: quarrying stone, producing steel, transporting cement. Each decision, whether to use precast or cast-in-place concrete, timber or steel, glass or composite, ripples through the project’s carbon story.

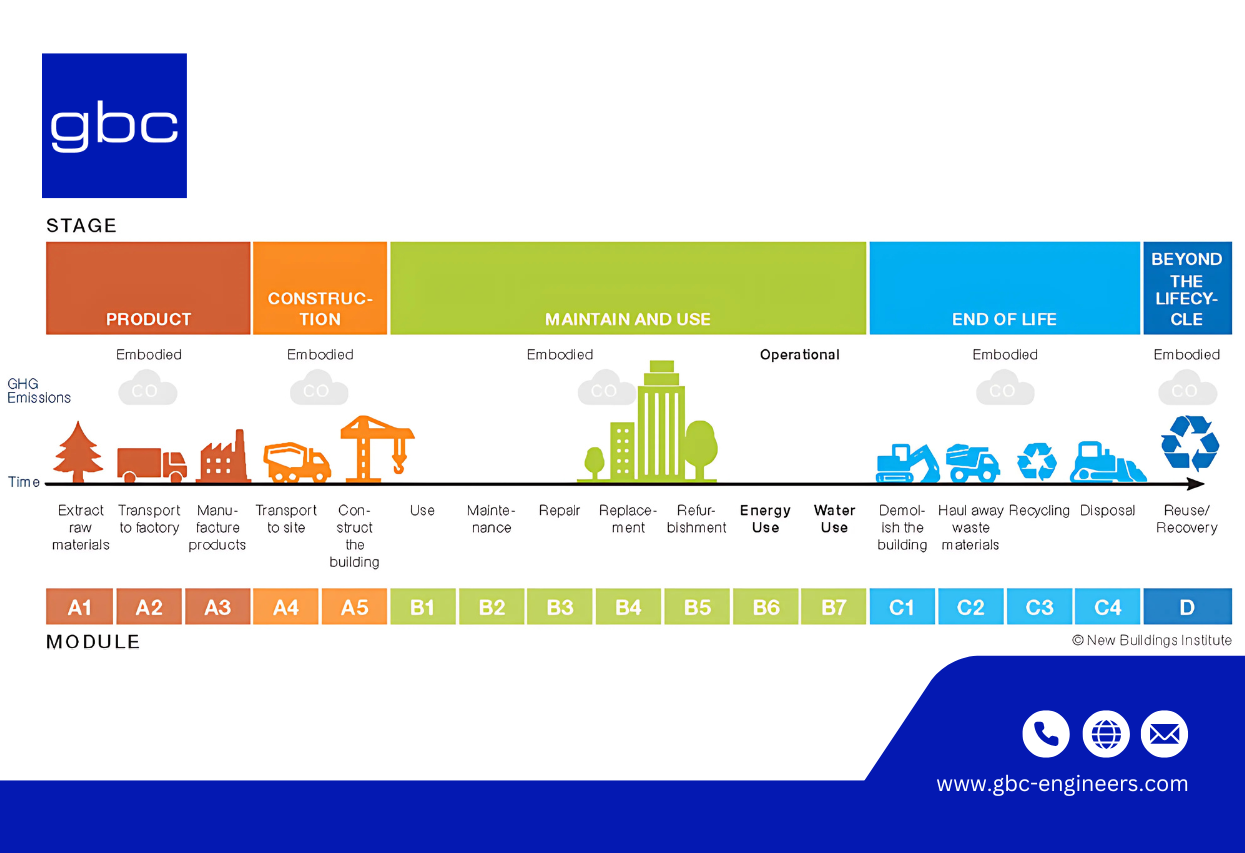

This is where Life Cycle Assessment (LCA) steps in. LCA is a scientific methodology for quantifying the environmental impact of a building over its entire life cycle. It doesn’t stop at the moment of construction; it stretches from cradle to grave:
- A1–A3: raw material extraction and manufacturing
- A4–A5: transport and construction processes
- B1–B7: use, maintenance, energy consumption, and replacements
- C1–C4: demolition, waste treatment, and disposal
- D: credits from recycling, reuse, or energy recovery
Rather than leaving sustainability to intuition, LCA offers hard data. It tells you where the “carbon hotspots” are, whether in the tonnes of steel reinforcement, the layers of insulation, or the choice of concrete mix.
What are the Key Factors of an LCA Report?
Life Cycle Assessment (LCA) has become an essential tool in sustainable structural design, helping project teams make data-driven decisions that minimize environmental impact from concept to construction. The LCA process follows a structured methodology divided into five key steps:
Define Goal and Scope
This initial step involves identifying the purpose of the assessment, defining its functional equivalent, study period, and system boundaries. A clear definition ensures that LCA results are relevant and actionable for the building’s intended use.
Collect Inventory
Detailed data is gathered on materials, energy usage, and construction processes throughout the building’s life cycle. Scenarios are developed to reflect different life cycle stages, capturing both net and gross amounts of resources.
Perform Impact Assessment
Environmental Product Declarations (EPDs) and other verified data sources are used to calculate environmental indicators such as GWP (Global Warming Potential). This ensures consistency and reliability in quantifying environmental impacts.
Interpret Results
The results are synthesized to derive meaningful conclusions, highlighting opportunities for reducing carbon footprint or improving resource efficiency.
Report and Verify
Transparent communication of findings, data sources, and verification processes is crucial, especially when reporting to stakeholders or integrating results into project documentation.
LCA should not be treated as a standalone analysis but rather as an integrated design tool:
- Schematic Design (SD): Engineers and architects review carbon goals, compare structural systems (e.g., steel vs. wood), and optimize foundations based on LCA insights.
- Design Development (DD): Focus shifts to identifying carbon-intensive “hot spots” such as concrete use and developing strategies for material efficiency.
- Construction Documents (CD): Specifications are aligned with GWP targets, and materials with low environmental impact are selected.
- Bidding and Construction: The design team ensures that environmental targets are incorporated in bid requirements and construction practices, including updates to the LCA based on final material choices.
By embedding LCA throughout the design and construction process, project teams can not only comply with regulatory expectations but also deliver buildings with significantly lower environmental impact—positioning sustainability as a core design value, not just a checkbox.
Why CO₂ Emissions Matter
The numbers are stark. The construction sector contributes nearly 40% of global CO₂ emissions, and while operational energy efficiency has improved, embodied carbon in materials remains a hidden giant.
- Concrete alone is estimated to account for 8% of global CO₂ emissions.
- A single decision—like reducing slab thickness by 10 mm across a project—can save hundreds of tonnes of CO₂.
- Switching insulation types or using higher-recycled content steel can shift a project’s carbon balance dramatically.
In addition, sustainability in construction is no longer optional. With global regulations tightening and clients demanding transparency, Life Cycle Assessment (LCA) has become one of the most important tools in modern building projects. It provides a scientific method to measure the environmental impact of a building throughout its entire life cycle—from material extraction and production to construction, use, and eventual demolition.
For developers and investors, reducing emissions is no longer about reputation; it is about compliance, eligibility for green finance, and long-term asset value. It turns sustainability from a vague ambition into quantifiable results that drive both compliance and competitive advantage.
Case Study from gbc engineers
When a client approached gbc engineers with 2D drawings and an IFC file for a structural project, their request was clear: “We need to understand the environmental footprint of this building.” At first glance, the documents provided limited insight. Flat drawings can show geometry but not the data richness needed for carbon assessment. The gbc team knew that to move from lines on paper to actionable sustainability, they needed a robust BIM model.
The model was rebuilt in Revit with multiple layers defined for walls and slabs, densities assigned for concrete, and reinforcement ratios embedded into beams and columns. Windows and doors were modeled with formulas to capture frame lengths and weights. Once the model was complete, Quantity Take-off (QTO) extracted precise material volumes. Each material was then mapped to its corresponding EPD.
The results revealed an unexpected hotspot: insulation layers contributed disproportionately to embodied carbon. Armed with this knowledge, the client opted for an alternative low-carbon insulation, reducing embodied emissions by 15% without compromising performance.
This was not just a calculation, it was a design decision, reshaping the building’s carbon story.
BIM and Revit: Enabling Data-Rich LCA Workflows
The transition from 2D to BIM is where LCA begins to gain power. gbc engineers takes architectural drawings, PDFs, or IFC files and turns them into data-rich Revit models. From best practice guidelines:
- Material labeling matters. Each family type should include explicit definitions (e.g., Concrete C30/37 instead of vague terms like “No Material”).

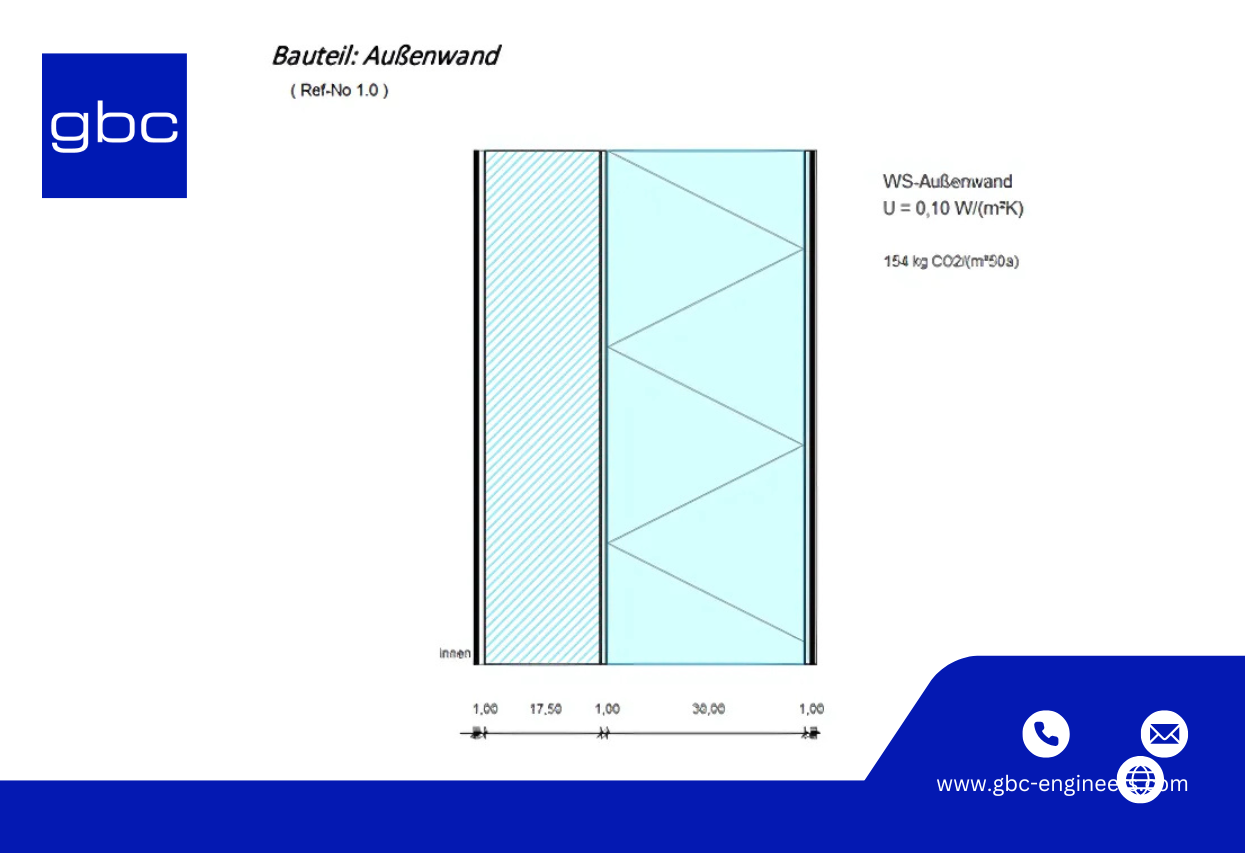

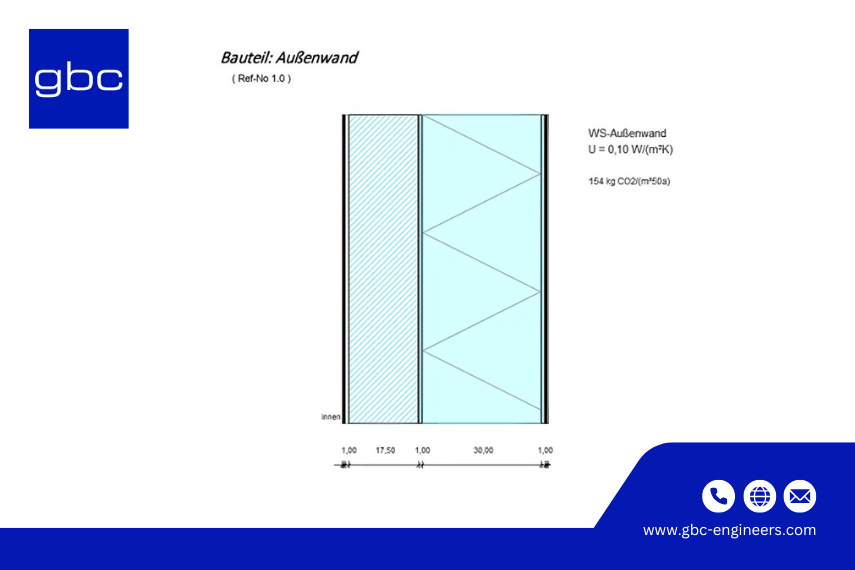

- Layered modeling is essential. Multi-material elements like walls and slabs must be modeled with all layers, including insulation and finishes.
- Parameters drive accuracy. Shared parameters such as Bauteilnummer, Bauteilart, Bauteilgruppe, Material density, Declared unit (m², m³, kg) enable automatic calculation.
- Reinforcement counts. Columns, beams, and slabs should include reinforcement details or documented ratios for realistic embodied carbon assessment.
- Avoid vague modeling. Hollow vs. solid elements must be defined correctly, while irrelevant decorative components should be excluded from LCA calculations.
This structured approach ensures that when a model is exported, the material quantities reflect reality and can be mapped directly to EPDs for reliable analysis.
Quantity Take-off service workflow:
Turning design data into an actionable LCA report involves a systematic workflow:
Input Data Collection
- Import architectural and structural drawings (plans, sections, details).
- Review technical specifications.
- Classify components according to client requirements (walls, slabs, beams, windows).
Revit Setup
- Create materials and family types with correct thickness and density.
- Define declared units consistently (m³, m², kg).
- Import IFC or DWG files from the client and align accurately.
Modeling Components
- Walls, slabs, beams, and columns are built with layered detail.

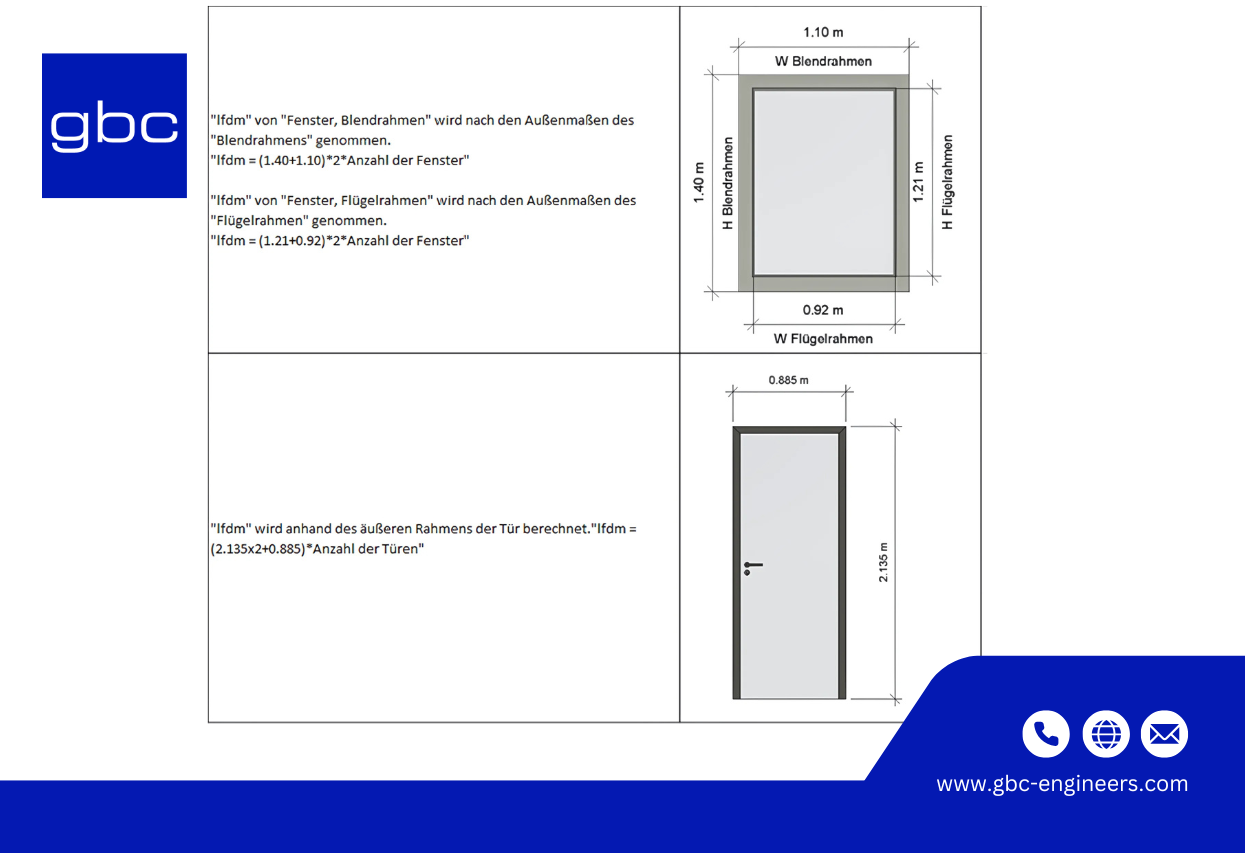

- Doors and windows include formulas for frame length and material weight.
- Railings and stairs require custom families to calculate total lengths and volumes
Quantity Take-off and Scheduling

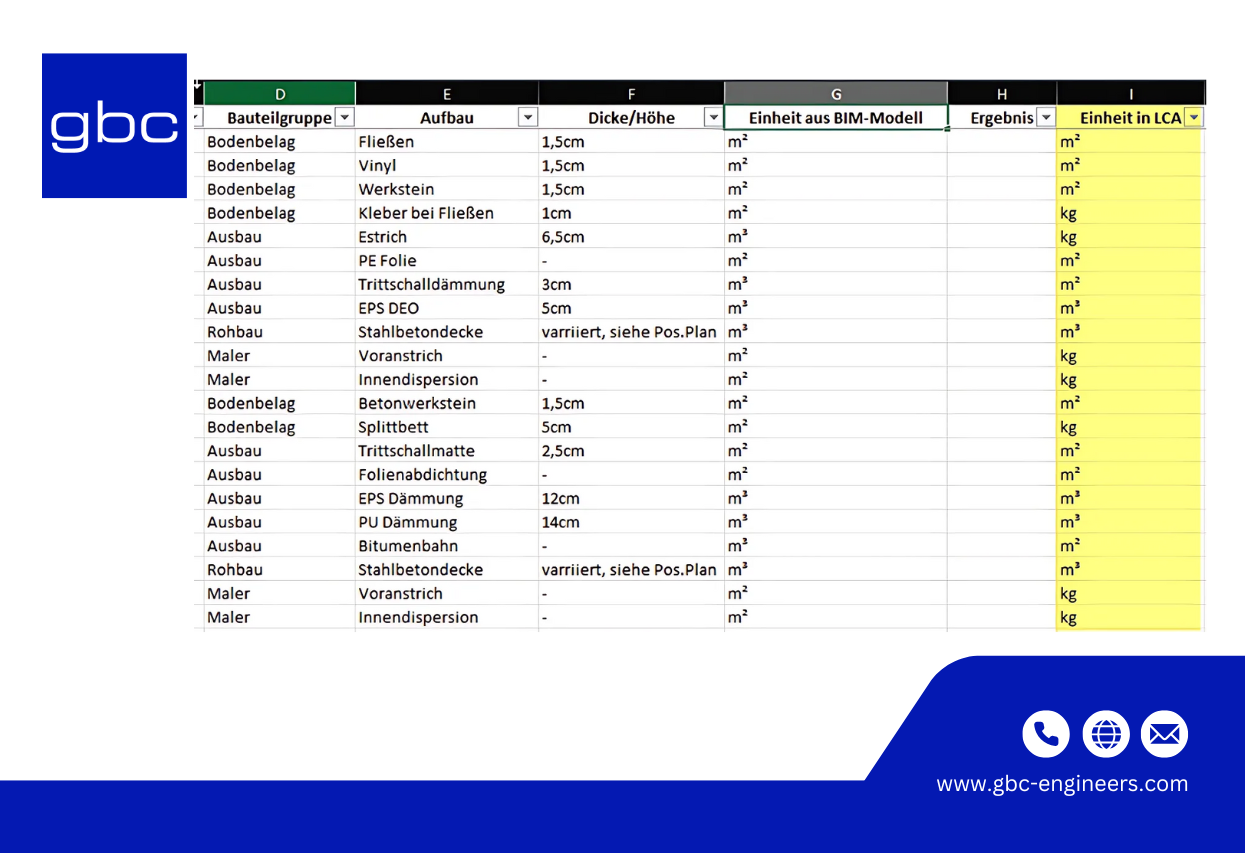

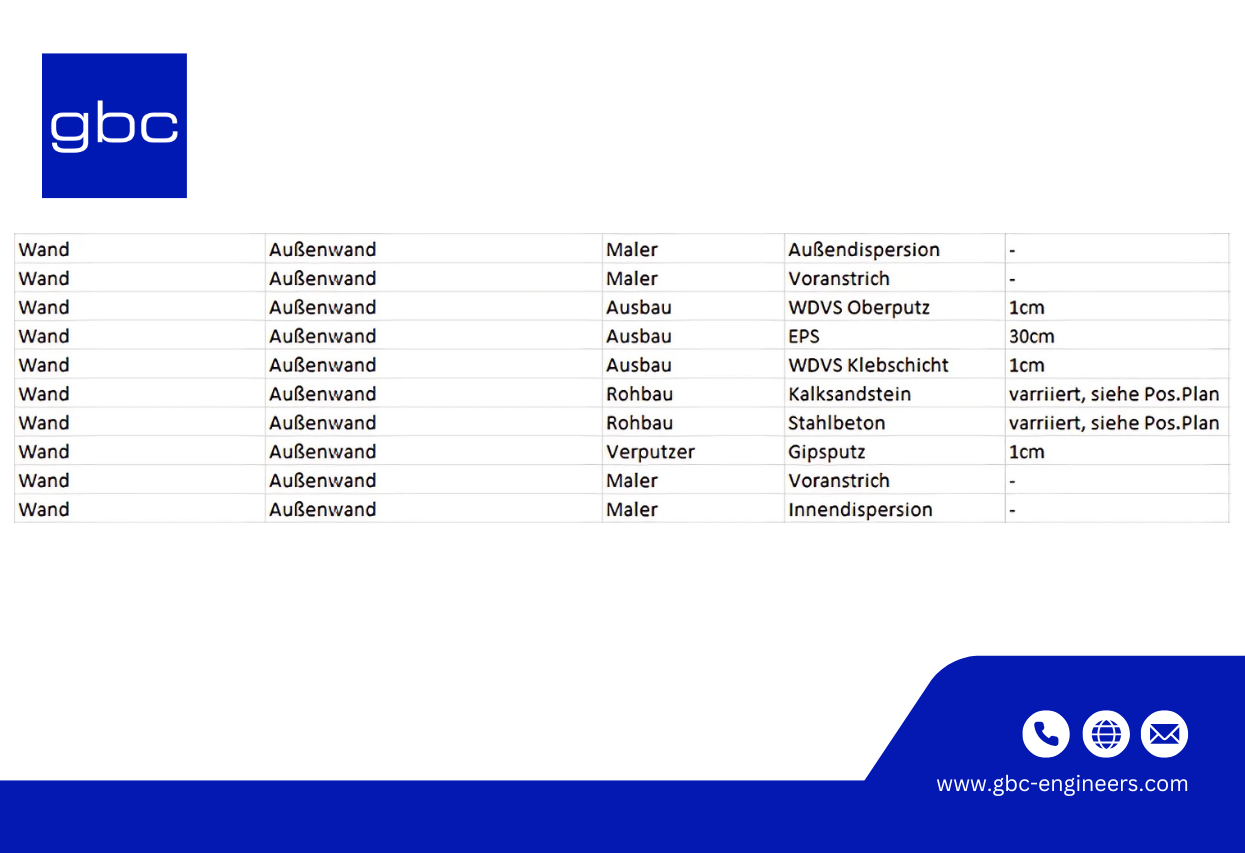

- Generate schedules including material codes, groups, thickness, and quantities.
- Ensure density and classification fields are included for accuracy.
Export & Integration
- Export Revit schedules to Excel (using plugins such as DirootsOne).
- Map materials with the corresponding EPD.
- Transfer results into LCA software for carbon calculation.
.png)
Checking & Validation
- Verify naming conventions and avoid contradictions.
- Confirm reinforcement assumptions.
- Ensure hollow vs. solid elements are modeled correctly.
- Exclude non-relevant model parts from analysis.
Submission
- Deliver the final model and transparent LCA report.
- Provide both per-component results and a consolidated building footprint.
Why Clients Need LCA Reports
Even if clients already have EPDs, they rely on engineering consultants to:
- Extract quantities accurately from BIM models.
- Map materials properly to EPDs.
- Aggregate thousands of data points into a clear, project-wide LCA report.
This workflow turns fragmented information into decision-ready intelligence, enabling clients to benchmark designs, optimize materials, and demonstrate ESG compliance in investor reports and sustainability disclosures.
Benefits for Stakeholders
- Clients/Developers: Compliance with EU taxonomy, ESG transparency, stronger bids in green tenders.
- Architects/Designers: Data-driven design choices and the ability to compare design options (e.g., precast vs. cast-in-place).
- Contractors: Improved planning, reduced material waste, optimized procurement.
- Society: Lower embodied carbon and measurable contributions to climate neutrality.
Conclusion: LCA as the New Standard in Construction
Life Cycle Assessment is more than a compliance requirement. It is the bridge between design intent and measurable sustainability performance. By combining EPD data with precise BIM-based quantity take-off, engineers and architects can generate reports that not only meet client requirements but also drive innovation in sustainable construction.
In the coming years, LCA will shift from a “nice to have” to an industry baseline, and firms that adopt BIM-integrated LCA workflows today will set the standard for tomorrow’s sustainable projects. At this critical intersection, gbc engineers supports clients by providing accurate Quantity Take-off services from BIM models, ensuring that environmental data is reliable, transparent, and decision-ready. The future of construction belongs to those who can turn complex data into actionable sustainability strategies, and LCA, enabled by robust quantity take-off, is the language of that future.
